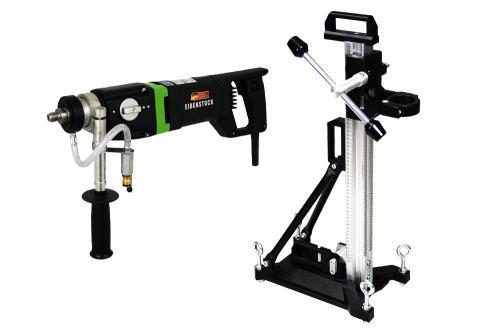

Eibenstock ETN 2001 Concrete Core Drill 2-Speed w/ Anchor Stand
Ideal for drilling concrete, reinforced concrete, brick, block and stone, the ETN 2001 heavy-duty wet and dry diamond concrete core drill has high torque output. Use hand-held or rig mounted. Two-speed gearbox provides the optimum RPM for hole sizes up to 4-inch diameter. Electronic torque limitation and speed control guarantee constant RPM even under load. This machine offers wet and dry diamond core drilling with the same tool. Replacing the water seal is easy and can be done on the job. This eliminates downtime and expensive repairs.
- Mechanical safety slip clutch
- Thermal overload switch
- Water swivel collar
- 2-speed oil bath gearbox – optimal lubrication
- Water supply on the gearbox extension
- Temperature control and GFCI overcurrent cut-off, optical overload indication
- Adjustable side handle
- Metal carrying case
- 5/8" x 11 UNC and 1-1/4 x 7 UNC connecting threads
Choose
- Drill + Stand
- Drill + Stand + Vacuum Pump
Choose Model
Drill + Stand
Additional information
Weight
Dimensions
Description
Power input
15 Amp
Rated Voltage
110 V
Load Speeds (RPM)
0-800 / 0-1570
No-Load Speed (RPM)
1000 / 2300
Drilling Diameter
Free hand - up to 3-1/4"
With drill rig - up to 4"
Spindle Connection
M18 male + 5/8" x 11 UNC + 1-1/4" x 7 UNC
Collar Diameter
52mm
Weight
36 lbs.
Supplied
ETN 2001 P, Anchor Stand BST 104/60 V and 53mm motor mount
PSV
Power input
15 Amp
Rated Voltage
110 V
Load Speeds (RPM)
0-800 / 0-1570
No-Load Speed (RPM)
1000 / 2300
Drilling Diameter
Free hand - up to 3-1/4"
With drill rig - up to 4"
Spindle Connection
M18 male + 5/8" x 11 UNC + 1-1/4" x 7 UNC
Collar Diameter
52mm
Weight
44 lbs.
Supplied
ETN 2001 P, Anchor Stand BST 104/60 V, vacuum pump and fittings
Eibenstock ETN 2001 Concrete Core Drill 2-Speed w/ Anchor Stand
Ideal for drilling concrete, reinforced concrete, brick, block and stone, the ETN 2001 heavy-duty wet and dry diamond concrete core drill has high torque output. Use hand-held or rig mounted. Two-speed gearbox provides the optimum RPM for hole sizes up to 4-inch diameter. Electronic torque limitation and speed control guarantee constant RPM even under load. This machine offers wet and dry diamond core drilling with the same tool. Replacing the water seal is easy and can be done on the job. This eliminates downtime and expensive repairs.
- Mechanical safety slip clutch
- Thermal overload switch
- Water swivel collar
- 2-speed oil bath gearbox – optimal lubrication
- Water supply on the gearbox extension
- Temperature control and GFCI overcurrent cut-off, optical overload indication
- Adjustable side handle
- Metal carrying case
- 5/8" x 11 UNC and 1-1/4 x 7 UNC connecting threads
Choose
- Drill + Stand
- Drill + Stand + Vacuum Pump
| Choose Model | Drill + Stand |
Additional information
| Weight | |
|---|---|
| Dimensions |
Description
| Power input | 15 Amp |
|---|---|
| Rated Voltage | 110 V |
| Load Speeds (RPM) | 0-800 / 0-1570 |
| No-Load Speed (RPM) | 1000 / 2300 |
| Drilling Diameter | Free hand - up to 3-1/4" With drill rig - up to 4" |
| Spindle Connection | M18 male + 5/8" x 11 UNC + 1-1/4" x 7 UNC |
| Collar Diameter | 52mm |
| Weight | 36 lbs. |
| Supplied | ETN 2001 P, Anchor Stand BST 104/60 V and 53mm motor mount |
PSV
| Power input | 15 Amp |
|---|---|
| Rated Voltage | 110 V |
| Load Speeds (RPM) | 0-800 / 0-1570 |
| No-Load Speed (RPM) | 1000 / 2300 |
| Drilling Diameter | Free hand - up to 3-1/4" With drill rig - up to 4" |
| Spindle Connection | M18 male + 5/8" x 11 UNC + 1-1/4" x 7 UNC |
| Collar Diameter | 52mm |
| Weight | 44 lbs. |
| Supplied | ETN 2001 P, Anchor Stand BST 104/60 V, vacuum pump and fittings |
