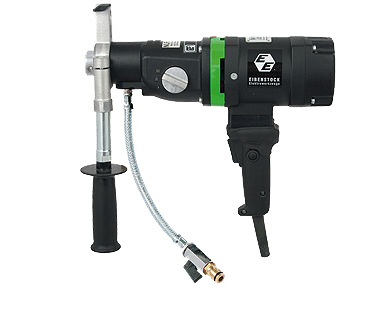

Eibenstock END 130/3.1 PO Diamond Core Drill 3-Speed
The END END 130/3.1 PO is a fast, efficient diamond core drill system. Use hand-held for up to 3" diameter and/or rig-mounted for up to 6" diameter. The mechanical 3-speed gearbox allows the operator to select the best speed for the core bit diameter. The result is optimum drilling and longer tool life. All models include a built-in leveling bubble, safety slip clutch, carrying case, water swivel, overload signal and Ground Fault Interrupter. Connecting threads of 5/8" x 11 UNC, 1-1/4"x 7 UNC and G1/2" fit all standard core bits.
Features
- 3-speed oil bath gearbox – optimal lubrication
- Short, compact design for tight spaces
- All-aluminium housing
- Integrated level bubble on motor and handle for 90˚ drilling
- Side handle with connection for centering device or water collection
- Overload temperature control and GFCI overcurrent cut-off
- Overload indicator light turns red when motor is overloaded - allows operator to reduce the feed pressure and protect the motor
- Cut-off carbon brushes – protects the motor
Additional information
Weight
Dimensions
Description
Power input
15 Amp
Rated Voltage
110 V
Load Speeds (RPM)
600 / 1300 / 2800
No-Load Speeds
1000 / 2200 / 4300
Drilling Diameter
Gear 1 - 3-1/4"-6"*
Gear 2 - 1-3/4"-3-1/4"
Gear 3 - 1/2"-1-3/4"
*with drill rig
Spindle Connection
1-1/4"x7 UNC
5/8"x11 UNC
Collar Diameter
60mm
Weight
16 lbs (motor only)
Supplied
In a molded carrying case with 5/8" and 1-1/4" adapters, water swivel, gardena hose connector and wrenches SW 32 + 41
Eibenstock END 130/3.1 PO Diamond Core Drill 3-Speed
The END END 130/3.1 PO is a fast, efficient diamond core drill system. Use hand-held for up to 3" diameter and/or rig-mounted for up to 6" diameter. The mechanical 3-speed gearbox allows the operator to select the best speed for the core bit diameter. The result is optimum drilling and longer tool life. All models include a built-in leveling bubble, safety slip clutch, carrying case, water swivel, overload signal and Ground Fault Interrupter. Connecting threads of 5/8" x 11 UNC, 1-1/4"x 7 UNC and G1/2" fit all standard core bits.
Features
- 3-speed oil bath gearbox – optimal lubrication
- Short, compact design for tight spaces
- All-aluminium housing
- Integrated level bubble on motor and handle for 90˚ drilling
- Side handle with connection for centering device or water collection
- Overload temperature control and GFCI overcurrent cut-off
- Overload indicator light turns red when motor is overloaded - allows operator to reduce the feed pressure and protect the motor
- Cut-off carbon brushes – protects the motor
Additional information
| Weight | |
|---|---|
| Dimensions |
Description
| Power input | 15 Amp |
|---|---|
| Rated Voltage | 110 V |
| Load Speeds (RPM) | 600 / 1300 / 2800 |
| No-Load Speeds | 1000 / 2200 / 4300 |
| Drilling Diameter | Gear 1 - 3-1/4"-6"* Gear 2 - 1-3/4"-3-1/4" Gear 3 - 1/2"-1-3/4" *with drill rig |
| Spindle Connection | 1-1/4"x7 UNC 5/8"x11 UNC |
| Collar Diameter | 60mm |
| Weight | 16 lbs (motor only) |
| Supplied | In a molded carrying case with 5/8" and 1-1/4" adapters, water swivel, gardena hose connector and wrenches SW 32 + 41 |
