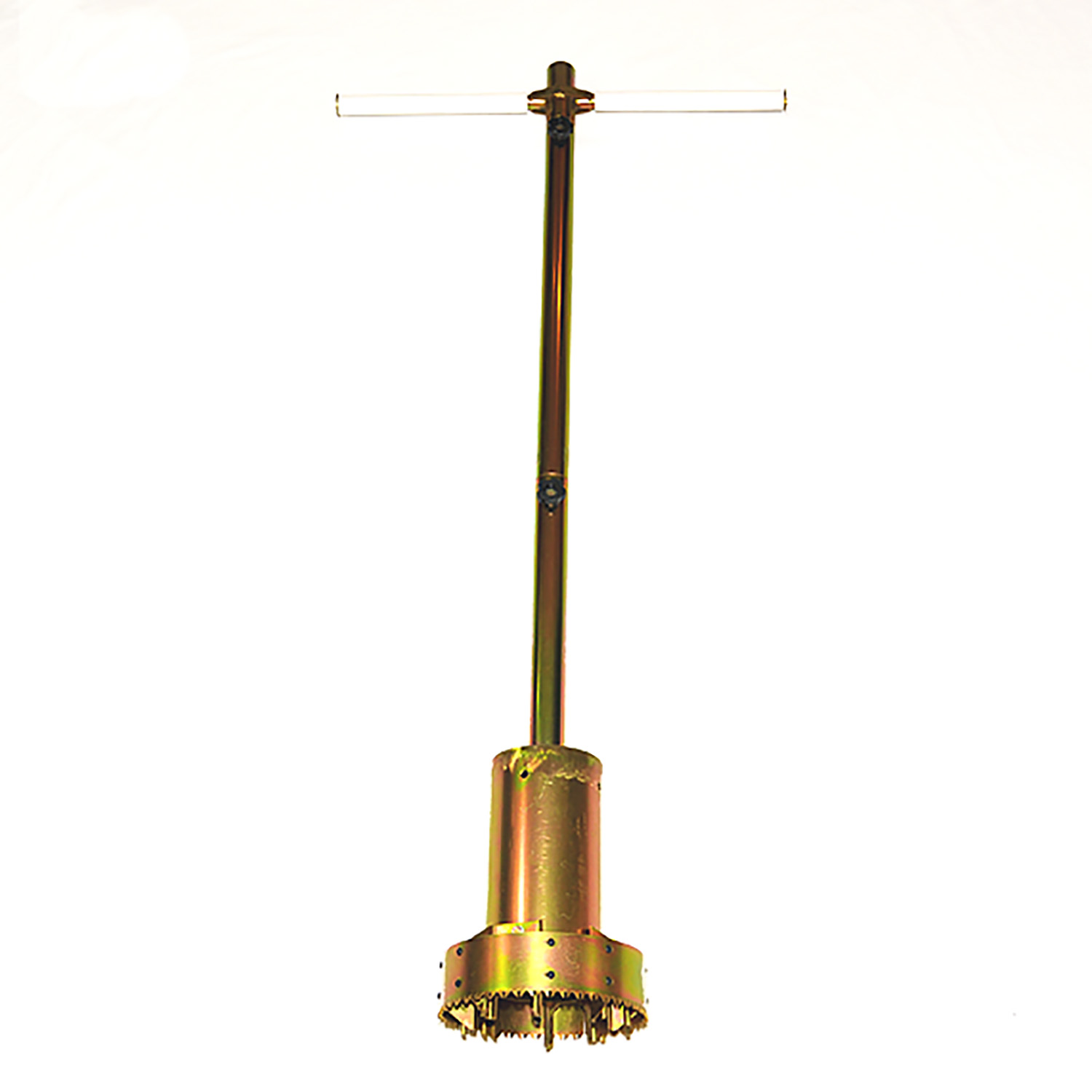

Post Hole Reamer 10-inch and 12-inch
Vacuum Assisted

The Vacuum Assisted Post Hole Reamer, enlarges 6 inch post holes to 10 inches or 12 inches. Uses vacuum with a 2-1/2” hose and pulls 140 to 200 CFM. This reamer works well in dry to damp soils from loam to hard compact clay. The blades cut through most soil materials and roots. Blade can be in up position to use guide tube for alignment or in down position to make flat bottom in hole. Requires 6 inch pilot hole.

Sizes

• 10 inch
• 12 inch

Key Features

Shop Vacuum Assisted. Rapidly enlarges any 6-inch hole to 10.25” or 12.25 suitable for concrete tubes. The Blades are completely replaceable. Use Shop-Vac for extracting reamed material as reamer reaches soil in bottom of hole.

The Digger is Ideal for:

• Enlarging 6” Post Holes
• Piling Holes
• Pole Barn Holes
• Cache Tube Burial
• Construction Pilings

Reamer Limitations:

Limitations are extremely hard soils types such as Caliche, Rocks, Large Roots, Construction debris, extremely hard material such as concrete and asphalt.

Reamer Includes

1. Reamer Head w/Universal Adapter and Vacuum Tube
2. Upper Vacuum Tube
3. Handle
4. Connecting Hardware and Manual

Weights:

Total shipping weight is 20 lbs.
Shipping Box: 14” x 14” x 36”
