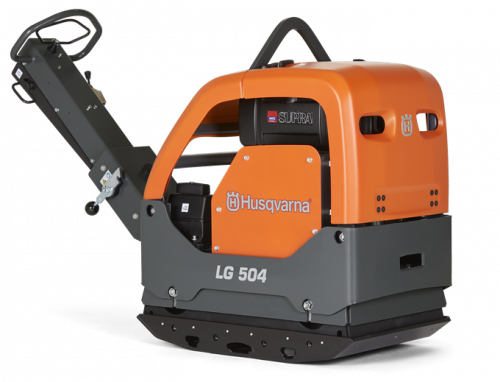

Husqvarna LG 504 Reversable Plate Compactor 22" - 28" - 34"
LG 504 is a powerful, reliable reversible plate compactor, developed for efficient compaction of deep and medium-deep granular soil. It makes an effective alternative or complement to rollers when compacting in confined areas. It features a Hatz 1D81Z diesel engine with electric start and an ergonomic, service-friendly design. A compaction indicator is optional. Indicator tells you when the ground is ideally compacted. Available with your choice of 22' - 28" - 34" Plate
Motor/engine model: Hatz 1D81Z
Power output: 12.3 hp
Speed forward, max (ft/min): 98.4 ft/min
Weight: 1036 lbs (22") 1100 (28") 1124 (34")
| Choose Model | LG504- 22" |
Additional information
| Weight | |
|---|---|
| Dimensions |
Description
| Fuel | Diesel EPA |
| Starter type | Electric start |
| Operating weight, lb (kg) | 1036 (470) |
| Frequency, Hz | 69 |
| Amplitude, in (mm) | 0.094 (2.4) |
| Centrifugal force, lbf (kN) | 14612 (65) |
| Speed, ft/min (m/min) | 98 (30) |
| H/A vibration, standard handle, m/s² | 2.5 |
| Sound power, guaranteed, dB(A) | 109 |
| Sound pressure at operators ears, dB(A) | 96 |
| Plate width, in (mm) | 21.7 (550)/27.6 (700)/33.5(850) |
| Plate length, in (mm) | 35.4 (900) |
| L×W×H, in (mm) | 65.7×21.7×46.9 (1670×550×1190) |
| Engine | Hatz 1D81Z |
| Rated power, hp (kW) | 12.3 (9.1) |
