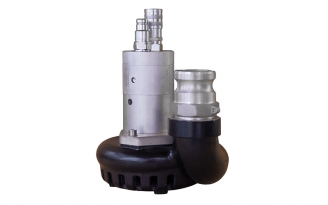

Multiquip ST3020BCUL Submersible Pump 3"
2.0HP, 230V/9.8A, 1Ø, UL & CUL Listed Electric Motor.
Built-in Overload Protection.
3” (NPT) Male Discharge Port.
Reliable double mechanical oil-filled seals.
Easy Impeller Clean-out.
Cast iron/steel motor casing serves as heat conductor.
Pumps Liquid Up To 120° F.
50’ of molded power cord w/strain relief
Dewaters Flat Surfaces Up To 1/2” Levels.
Additional information
| Weight | |
|---|---|
| Dimensions |
Description
| Impeller Type | Cast-Ductile-Iron | |
| Impeller Disc Size | 3 in | 75 mm |
| Total Head | 72 ft | 22 m |
| Water Capacity | 170 gpm | 644 lpm |
| Max. Solid Intake | 0 in | 0 mm |
| Power | 2 HP | 1.5 kW |
| Phase | Single | |
| Voltage | 230 V | |
| Starting Amperage | 52 A | |
| Running Amperage | 10.5 A | |
| Cable Length | 50 ft | 15.2 m |
| Pump Diameter | 6.7 in | 170 mm |
| Overall Height | 28.5 in | 724 mm |
| Operating Weight | 67 lb | 30 kg |
