ICS Diamond Chainsaws

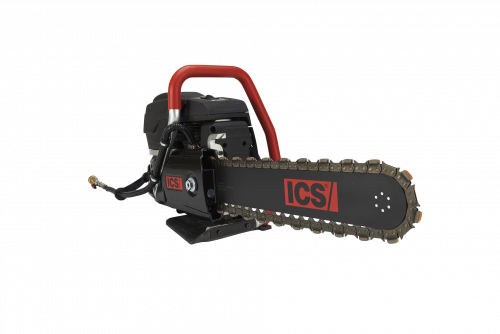

ICS Gas Powered Chain Saw 695F4-PG Series
The new 695XL F4 features include an easy to start engine with higher energy ignition system and durable, long-lasting components including a new muffler, carburetor and piston & cylinder. It is equipped with an integrated water delivery system that continuously feeds water to the blade. This package is equipped with a 16" PowerGrit chain and guidebar for cutting ductile pipe.The 695XL F4 is the highest horsepower ICS gas saw for frequent-use by general construction, utility contractors and concrete professionals.
Free Freight available Continental United States.
Additional information
| Weight | 27 lbs |
|---|---|
| Dimensions | N/a |
Description
| Engine Type | 2-Stroke, Air Cooled |
| Displacement | 94cc (5.7 cu-in) |
| Horsepower | 4.8kW (6.4 hp) @ 9000 rpm |
| Torque | 5.7 Nm (50.4 in-lbs) @ 7200 rpm |
| Engine Speed | 9,300 +/- 150 rpm (max)/2,700 +/- 100 rpm (idle) |
| Chain Speed at Maximum Power | 28 m/s (5500 ft /min) |
| Weight | 9.5 kg (21 lbs) powerhead only |
| Dimensions | 46cm (18") L x 36cm (14") H x 30cm (12") W |
| Starter | Recoil, dust and water resistant |
| Ignition | Special water resistant electronic ignition |
| Fuel ratio | 2% (50:1) gasoline-to-oil |
| Fuel Capacity | 1 liter (0.26 gallon) |
| Water Supply Requirement | Minimum: 1.5 bar (20 psi) |
| Water Flow Requirement | Minimum: 4 lpm (1 gpm) |
| Guaranteed Sound Power Level, Lwa (1) | 115 dB(A); (Kwa=1.0 dB(A)) |
| Equivalent Sound Pressure at the Operator's Ear Lwa | 104.6 dB(A) (K=1.0 dB(A)) |
| Vibration, ahv eq Concrete Cutting (2) | 3.6 m/s2 (K=1.0 m/s2) Front Handle/3.1 m/s2 (K=1.0 m/s2) Rear Handle |
| Vibration, ahv eq Pipe Cutting (2) | 5.62 m/s (K=0.2 m/s2) Front Handle/5.28 m/s2 (K=0.2 m/s2) Rear Handle |
