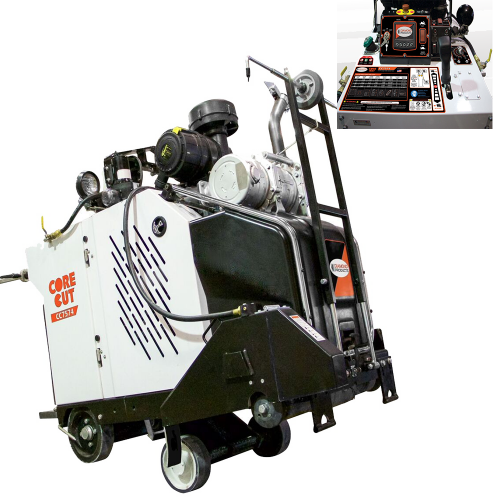

Core Cut CC7574DK Kubota Turbo IN-LINE WALK BEHIND SAW 20"-48"

Core Cut CC7574DK Kubota Turbo IN-LINE WALK BEHIND SAW 20-48

In-line Walk Behind Saw with Increased Production, Lower Maintenance Costs and Better Fuel Efficiency. 74 HP Kubota Turbo . Available with Single Speed, Single Speed/Clutch and 3 Speed Transmissions. Choose 20' 26" 30" 36" 42" 48" (3sp 30"-48")

  • Tier 4 Final Kubota® diesel engine
  • Self-propelled Eaton Model 10 transmission
  • Available with enhanced clutch assembly that allows the blade to be disengaged while the engine is running (single speed only)
  • Strongest frame on the market
  • Hydraulic wheel motor drive
  • Blade shaft gearbox-oil bath for low maintenance
  • High pressure common rail electronic fuel injection.
  • Modern computer interface engine controls
  • 20”-48” Blade Capacity

Available Options

  • Water Pump (electric)
  • Weight Kit (55 lbs)
Choose Transmission Single Speed
Choose Blade Guard Size 20"
Choose Transmission
Choose Blade Guard Size
Price Qty Purchase
Call For Price
Item ID 5801240 In Stock
Save to Wish List Continue Shopping

Additional information

Weight 2210 lbs
Dimensions N/a

Reviews

This product has not been reviewed yet. Be the first to review it.

Your review

Description

Specifications:
Maximum depth of cut with 20” blade: 7-1/4” (5” flange)
Maximum depth of cut with 26” blade: 10-1/4” (5” flange)
Maximum depth of cut with 30” blade: 12-1/4” (5” flange)
Maximum depth of cut with 36” blade: 14-3/4” (6” flange)
Maximum depth of cut with 42” blade: 17-1/4” (7” flange)
Maximum depth of cut with 48” blade: 19-3/4” (8” flange)
Engine: Kubota Turbo Diesel
Engine Specs: 4 Cylinder, 3.3 Liter
Max Engine Power: 74.3HP at 2,600 RPM
Power at the Blade Shaft: 70 Horsepower
Emission Regulation: EPA Tier 4 Final Compliant
Blade shaft diameter: 2”
Arbor size: 1” w/drive pin
Blade shaft bearings: Multiple ball bearings in oil bath
Blade shaft drive: 20 V-belts, 4 power bands
Blade mounting: Right or Left
Blade raise & lower: Electro-hydraulic pump
Blade Coolant: Dual multi-spray tubes
Drive speed: 0-250 feet/min forward and reverse
Transmission: Hydro pump powering dual wheel motors
Air filter: 4 stage w/restriction indicator
Fuel capacity: 9 gallons
CC7574DK Single Speed RPM
Blade Size Blade RPM Max Cut Depth
20" 2300 7-1/4"
26" 1875 10-1/4"
30" 1675 12-1/4"
36" 1375 14-3/4"
42" 1125 17-3/4"
48" 1000 19-3/4"
